Description
Guillotine Shears from, 2000x4 mm to 6000x30 mm

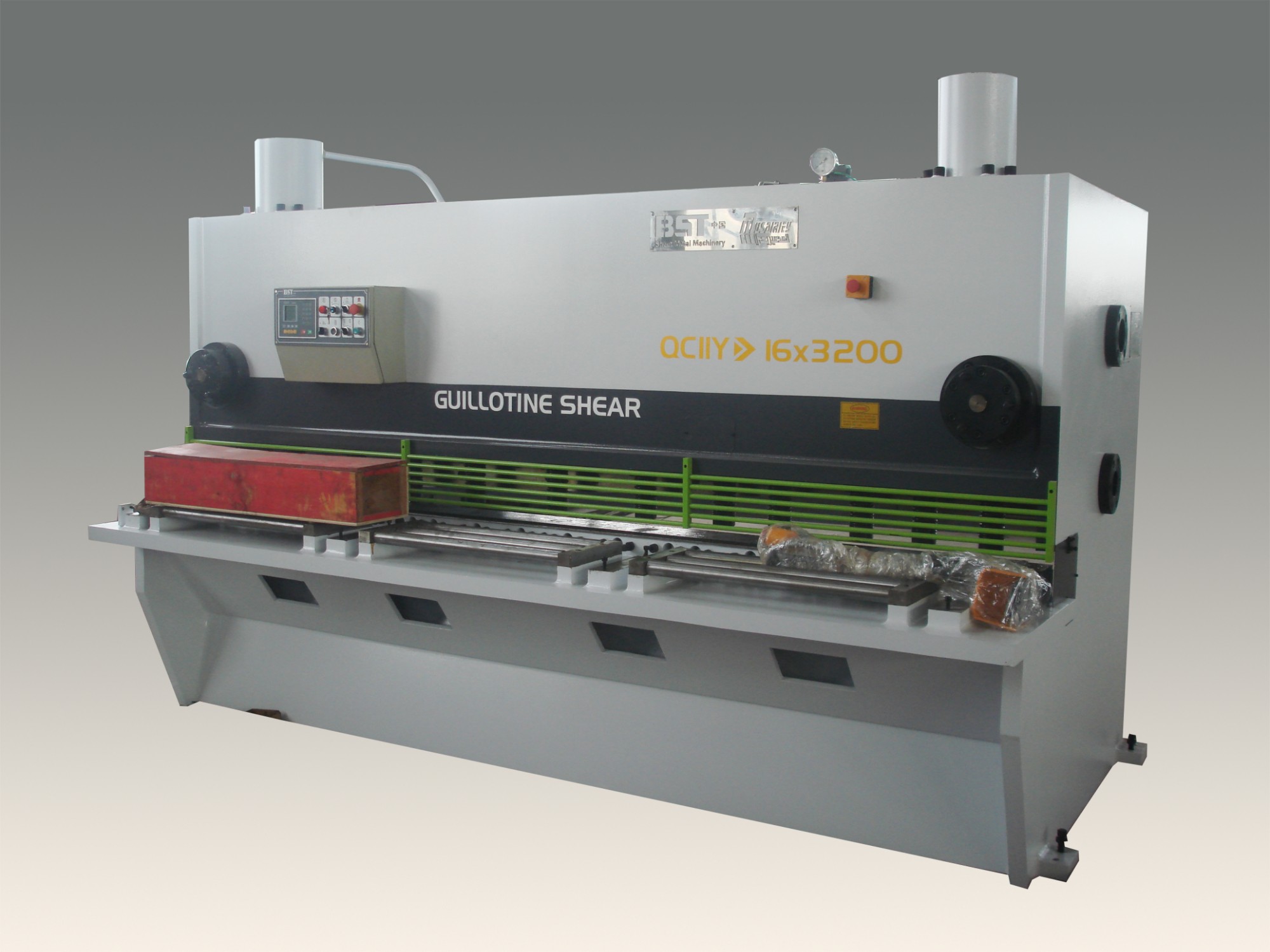

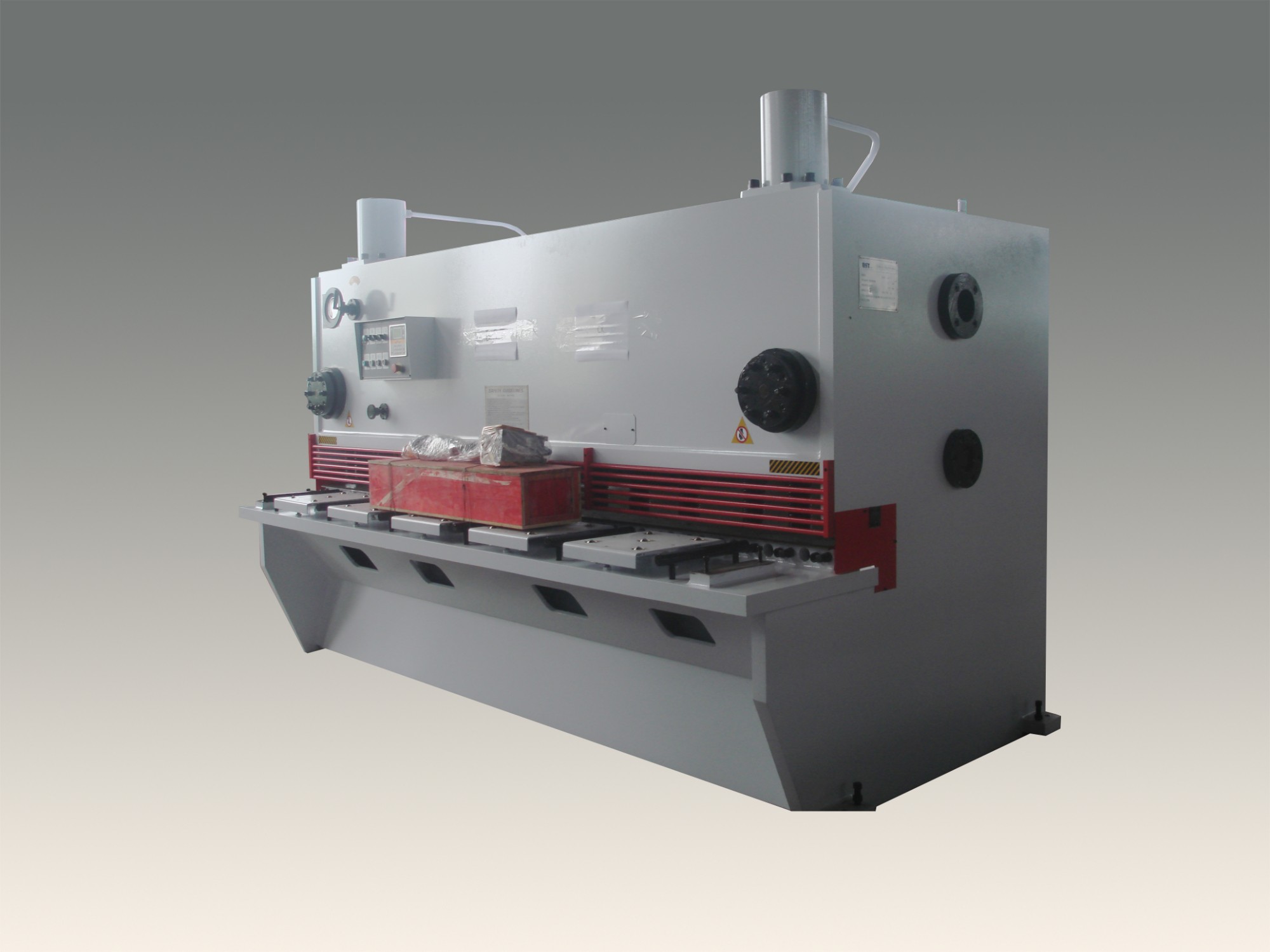

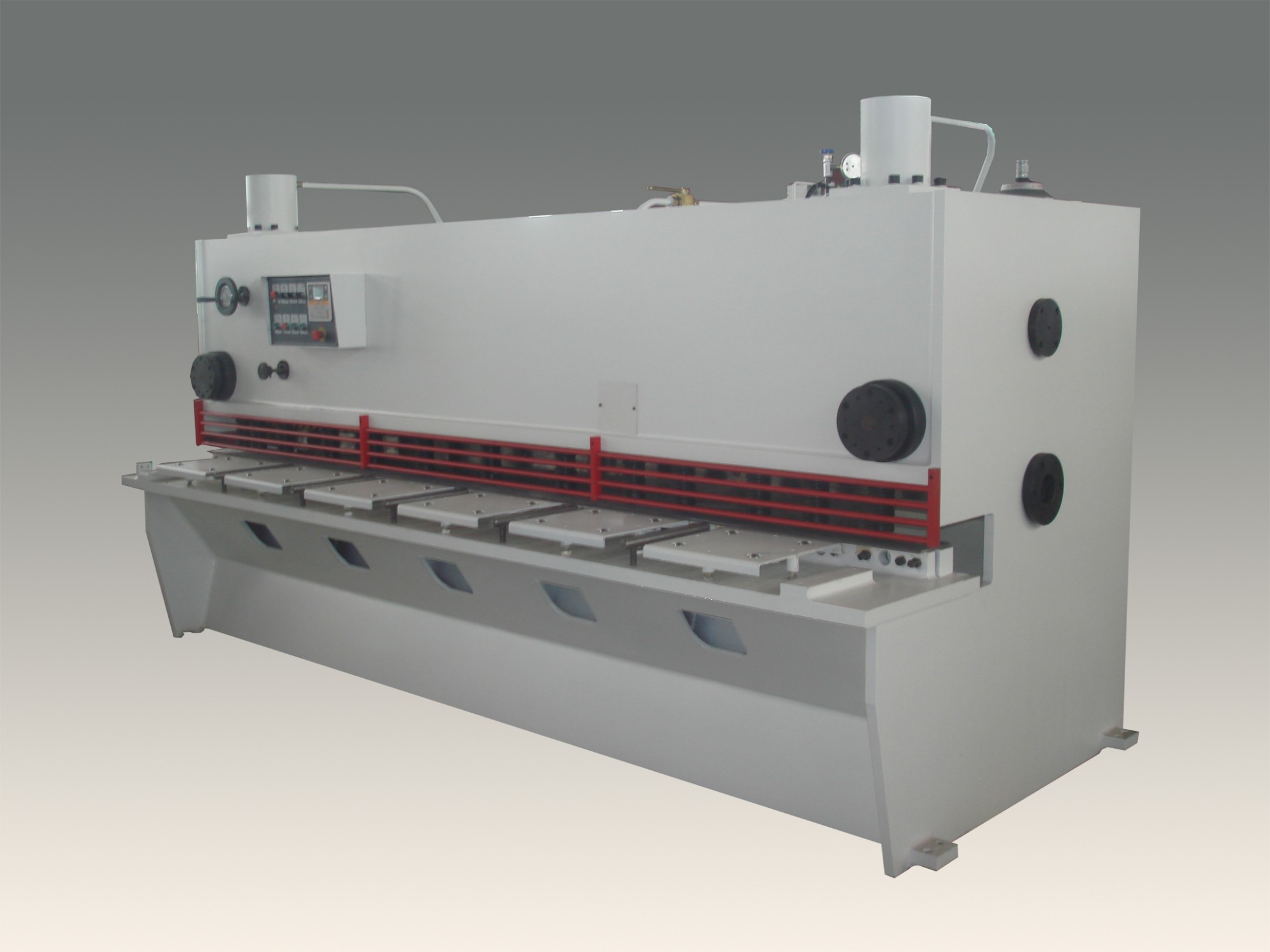

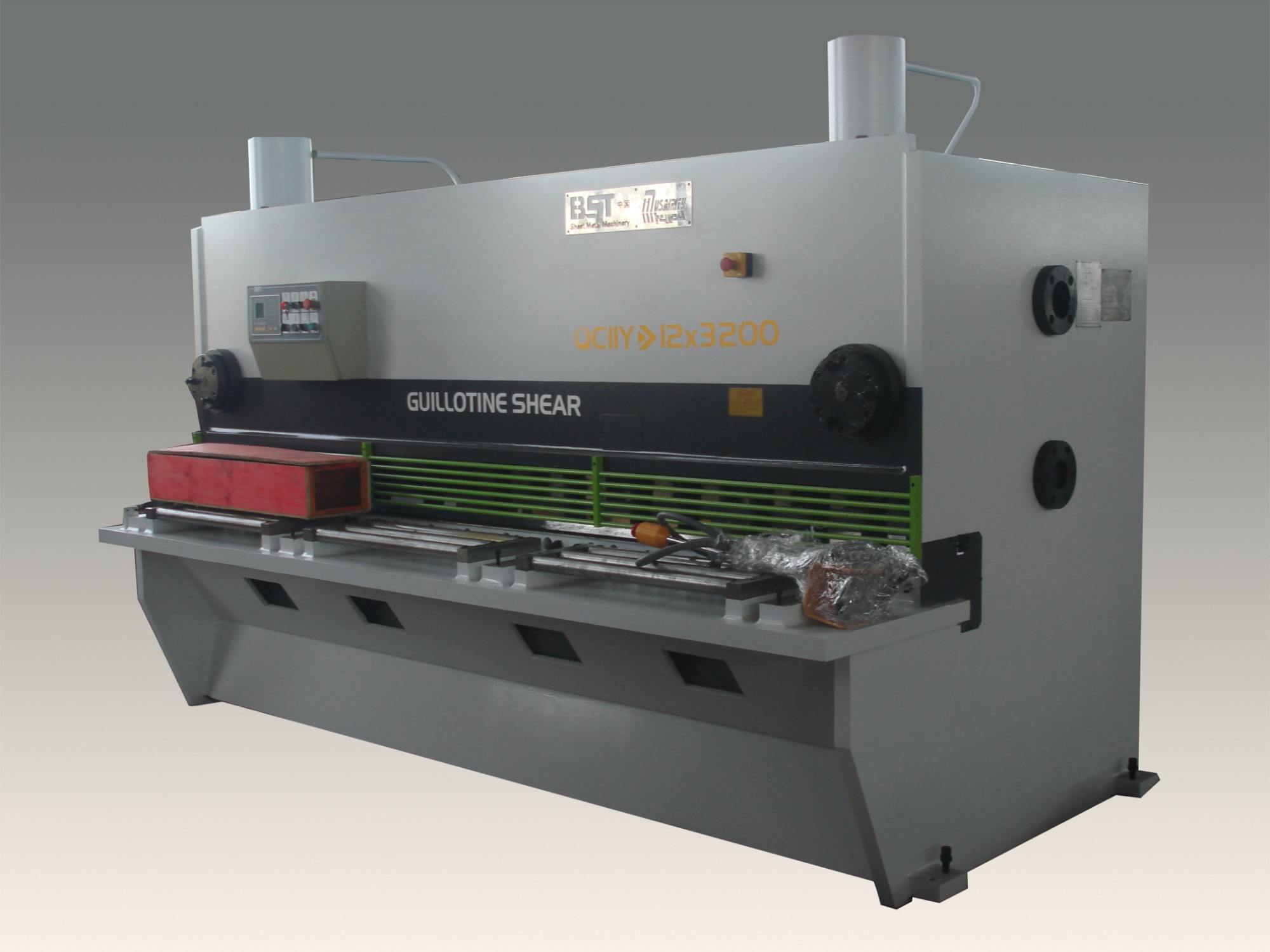

Guillotine SHEARS, Mdlo QC11Y Equipped with D.E ELGO P401
Hydraulic shears, BST model QC12Y; They are manufactured in CHINA in the factory located in NANTONG With the best components of the national and international market, with its own design, robust, modern, and a studied manufacturing plan to meet our quality requirements.
All our machines are tested at the factory through an exhaustive quality control and automatic operation of at least 72 hours, followed This ensures a perfect operation of the machine from day one in its facilities
Details to highlight of the Mdlo. QC11Y:
Equipped with a D.E It controls the X-axis, Material Library, cutting number and cutting length, indicating the position of the blade separation. And also the possibility to work in automatic or manual
Standard composition of QC11Yshears:
* Front control panel, includes CNC ELGO P4011,
*CNC P4011 controls: the rear stop, thickness to be cut, cut length selector, number of cuts, indication of the separation of blades to be manually positioned by the operator, Material library, countless programs, Technical Assistance via Ethernet, etc.
* Rear stop travel 800 to 1000 mm. (Depending on model)
* Table with embedded steel balls for the best sliding of the plates
* Separation of blades, at one end of the machine. (Optionally from CNC)
* Lighting cutting area.
* Shock count and programming (Automatically from CNC)
*1 Millimetrated squad arm with regatta and squat stop.
* Desktop arms (quantity by model)
* Independent hydraulic treads
* Rear drop ramp.
* Folding front protection with safety microphones.
* Rear security protection.
* Machine drive pedal with double safety.
* All security stops are connected to a safety module and manual reset
