Description

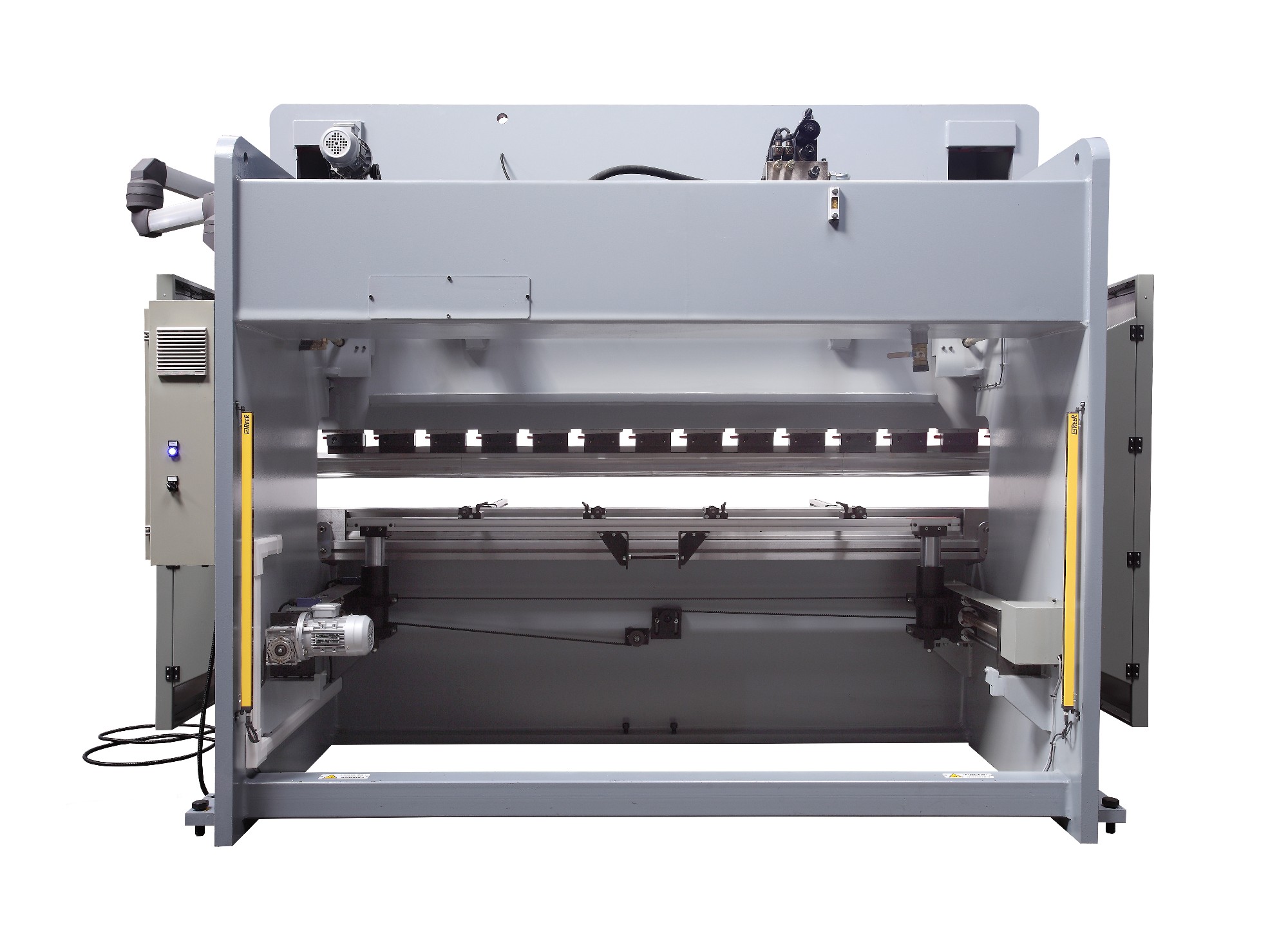

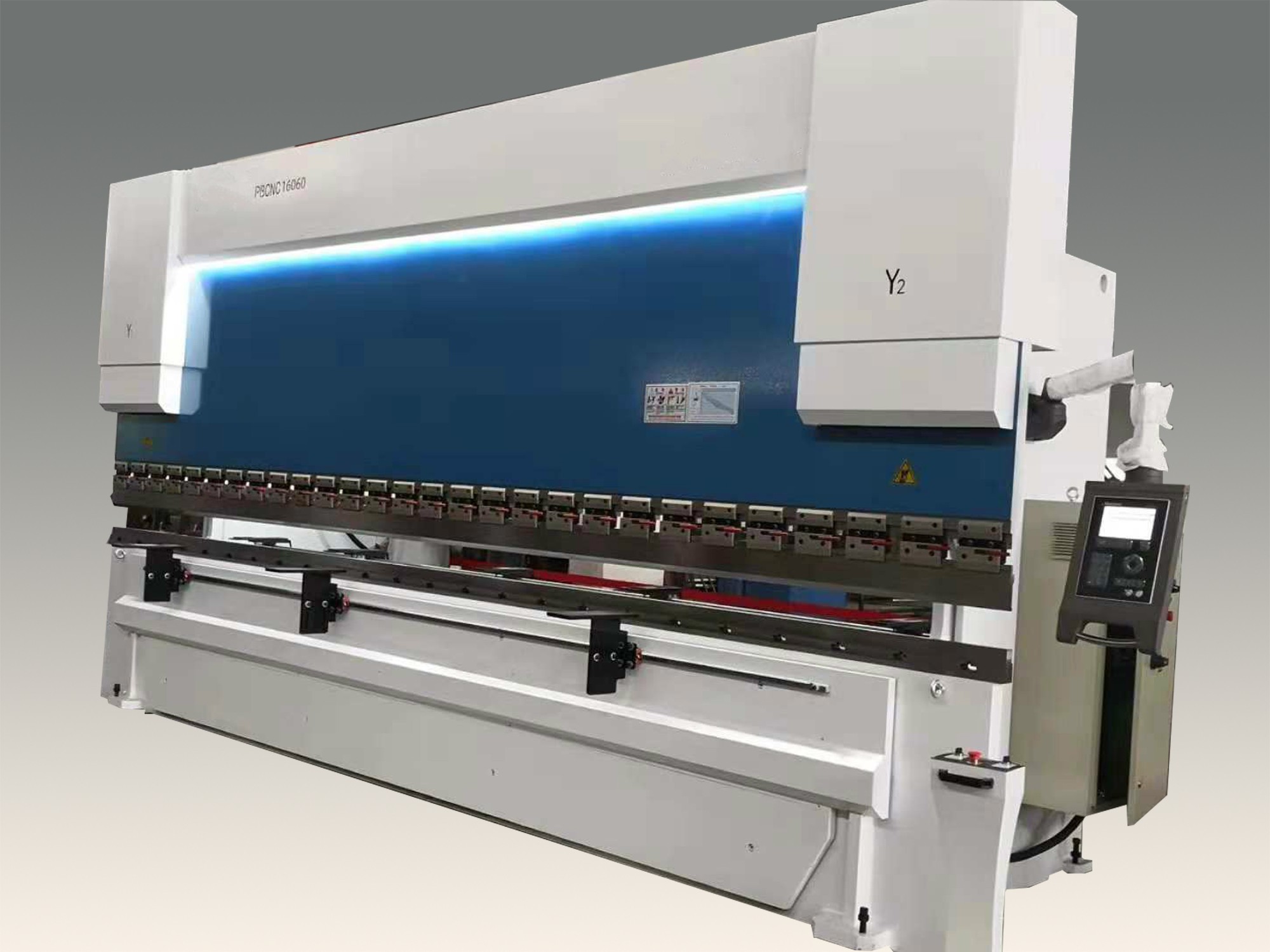

BST synchronized hydraulic press brakes with the most modern and up-to-date technology puts at your fingertips quality service precision with a moderate price.
The WE67K is equipped as standard with: bending compensation table integrated in the structure of the lower board with a system of 3 boards and hydraulic cylinders perfectly controlled by the C.N.C.
The basic configuration consists of DELEM 52s with touch screen and 2D graphic control at 4 axes., Optionally they can be equipped with other C.N.N of more axes the machine is open to put as many axes as the customer needs.
The standard configuration is for 4 axes Y1, Y2, X and R plus pressure, bending compensation, the false swan neck that corrects the position of the punch according to the flexion of the structure. It has an extensive library of punches, dies and materials to control the quality of work materials, hardness, resistance. The machine is equipped with an intelligent system of perfect hydraulics, in harmony with the CNC which instructs the solenoid valves for a perfect control of the parallelism in the lowering of the board, while controlling the necessary pressure and pumping of the table .
Capabilities in which we manufacture this model of Mdlo.WE67K folder:
From 1,100 to 7,100 folding length and from 30 to 1,000 tons of power. of power
Optional accessories, the machine can be equipped with as many accessories as needed until the machine is converted into an automated work center. Ask us for information, you will be informed of the most appropriate for you.
WITH THE QUALITY, PRECISION, SERVICE AND PRICE OF BST
The WE67K model is the result of research, of the BST press, an economical machine but with a quality at the level of the best international press in its category. The Base Composition is C.N.C. Cybelec DNC 60 with 3-axis Y1 Y2 control and X 3 D drawing software With Direct Communication to the C.N. Draw the Part you want to fold and check before sending it to the machine, that all data and folds are correct. Matrix with 4 UVES centered of 60-60,90-90, 130-130,150-150 and 200-200 depending on the capacity of the Machine. 150 mm and 86o punch, Table for THE AUTOCENTRAGE of matriz Optional: Manual or C.N.C. Axles R1 and or R2, X2 axles, Z, Z1 and o Z2 Front arms supports sheet metal with manual sliding.
